Skid fabrication documents

Drafted from your spec. Ready for your seal.

We draft the 3D model, P&ID, isometrics, and bill of material for your skid from your line list and design basis. Every package is checked against your own documents before it reaches you, then goes to your engineer of record to review and seal.

Request a quote See what you get

TitlePUMP SKID, EXAMPLE (FICTIONAL)

Drawing no.EX-001

RevA

Drawn byFabReady Drafting

CheckedAutomated + human

Engineer of recordCustomer's PE reviews and seals

Drawing index

What a package contains

Every document comes from one model of your skid, so the BOM, drawings, and 3D view cannot drift apart.

Sheet	Document	What it is
01	Bill of material	Pipe by size and schedule, fittings, flanges, valves, and instruments. Excel format.
02	P&ID	Drafted from your markup and line list, with line numbers matching your list.
03	Piping isometrics	Per line, with cut lengths and a weld and fitting list.
04	General arrangement	Plan, elevations from every side, and isometrics, with structure, equipment, piping, and electrical shown as separate layers.
05	3D model	Equipment, piping, valves, and conduit in place, for layout review and fabrication planning.
06	Check report	What was checked, what was flagged, and what we need from you.

V-101 horizontal

D 0.72 m · shell 1.30 m

Skid 4.4 × 2.3 m · NPS 3

No layout flags

Fictional skid, built for this page from simple shapes. The frame, supports, piping and conduit follow every change because they all come from one model. It is a picture, not a design check.

V-101: Vessel
E-101: Shell and tube heat exchanger
P-101: Pump and motor
BV-101: Ball valve
CV-101: Check valve
GV-101: Globe valve
Y-101: Y-strainer
LSH, LSL: Level switches
PT-101: Pressure transmitter
TT-101: Temperature transmitter
GT-101: Gate valve on the feed line
TI-1, TI-2: Tie-in flanges at the skid edge, feed in and product out
MCC-101, DP-102: Electrical panels, with conduit

The sample drawings are below. We tell you at quote time which documents are ready and which are drafted by hand.

Sample set

Sample drawings

One fictional skid, drafted the way a customer package would arrive: bill of material, P&ID with the skid battery limit, general arrangement from every side and by layer, piping isometrics per line, and the 3D model. Dimensions are left off these samples.

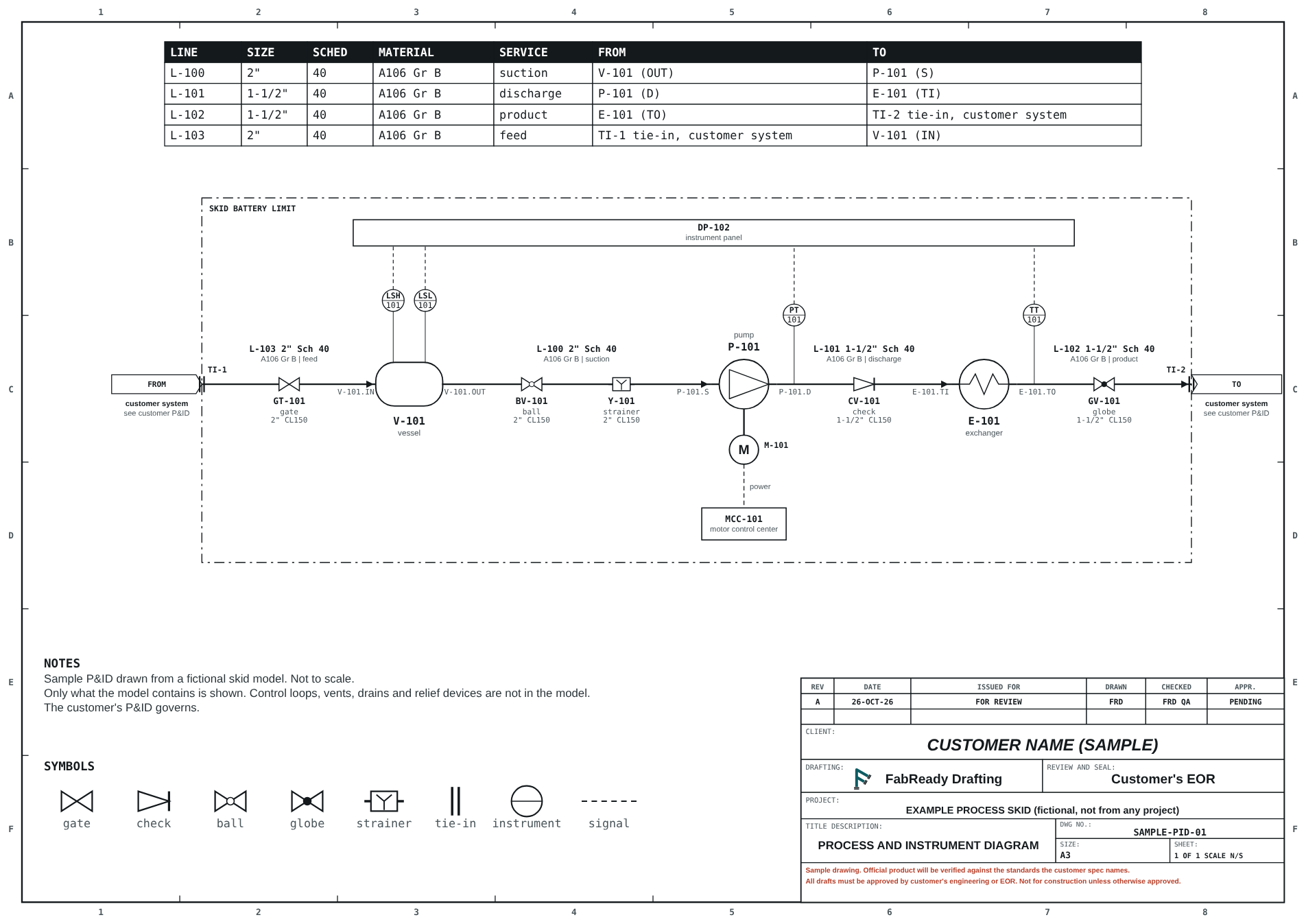

Sample P&ID of a fictional process skid: vessel V-101, pump P-101 and heat exchanger E-101 in a loop, with valves and instruments, in a formal title block. — **Sheet 02 / P&ID**Skid battery limit with feed and product tie-ins, equipment, valves, instruments and the line table.

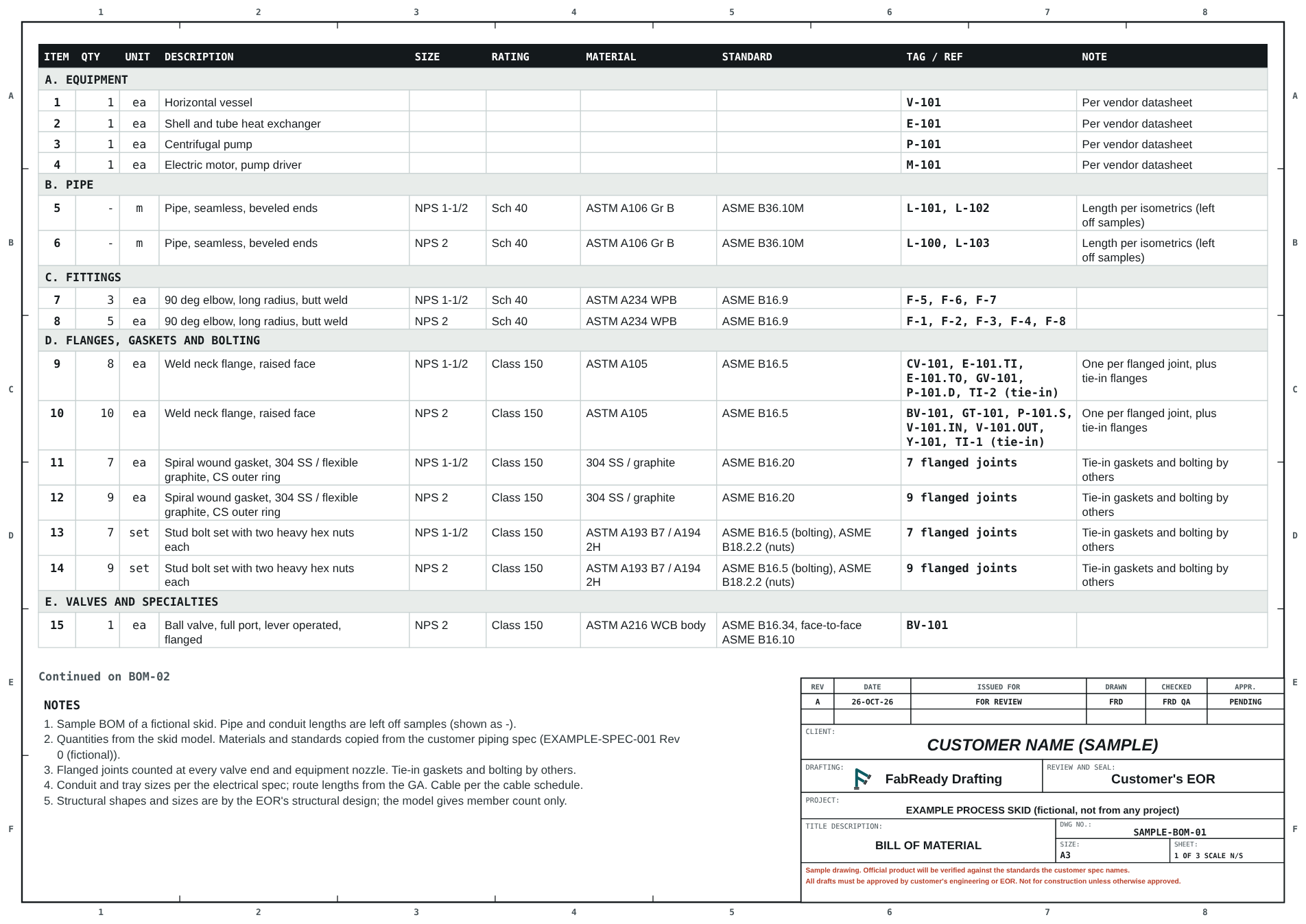

Sample bill of material, sheet 1: equipment, pipe, fittings, flanges, gaskets and bolting with sizes, ratings, materials and standards. — **Sheet 01 / BOM-01 Bill of material**Equipment, pipe, fittings, and every flange, gasket, and bolt set, each traced to its spec row and standard.

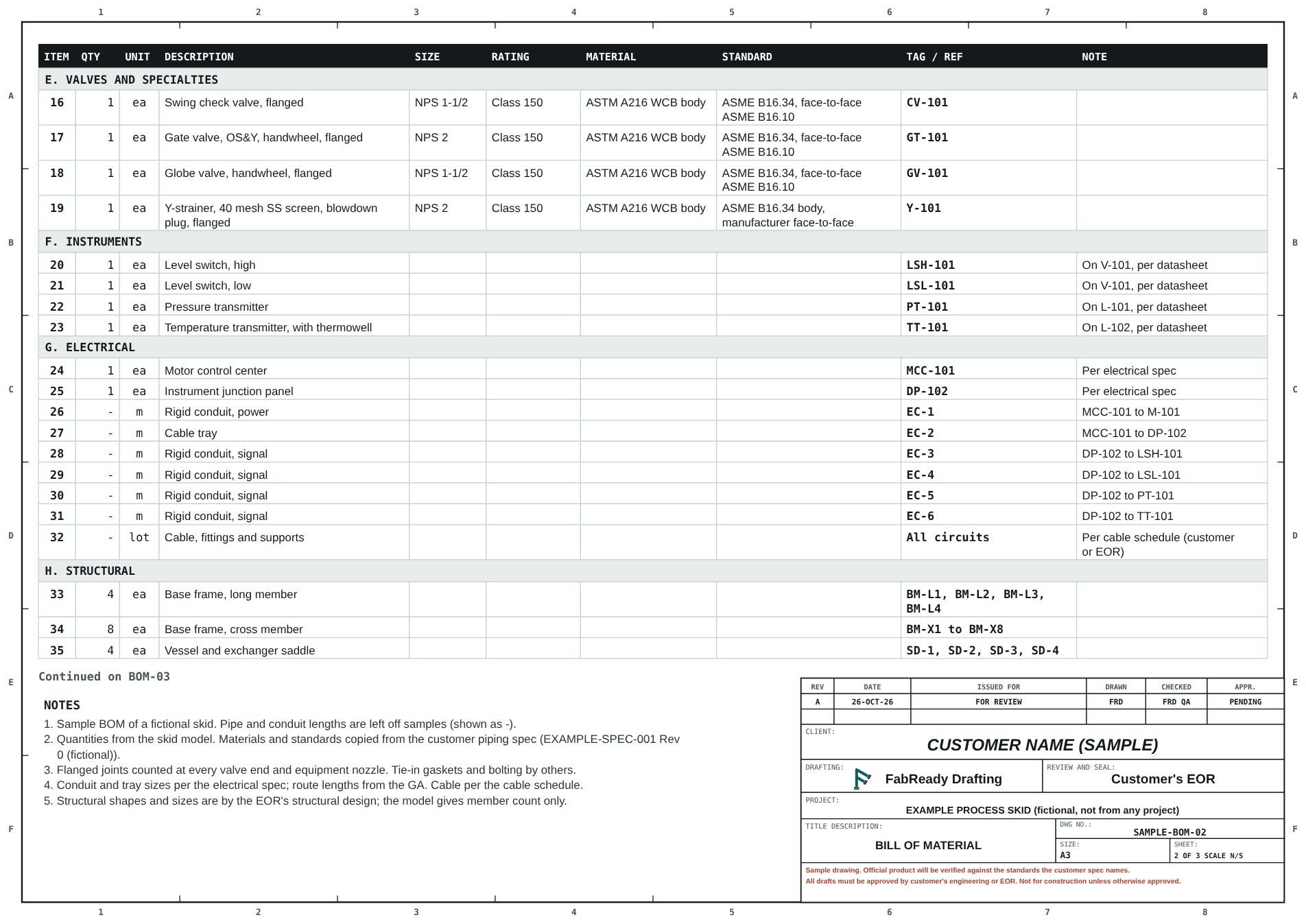

Sample bill of material, sheet 2: valves, instruments, electrical and structural items. — **Sheet 01 / BOM-02 Bill of material**Valves and specialties, instruments, panels, conduit, tray, and structural members by tag.

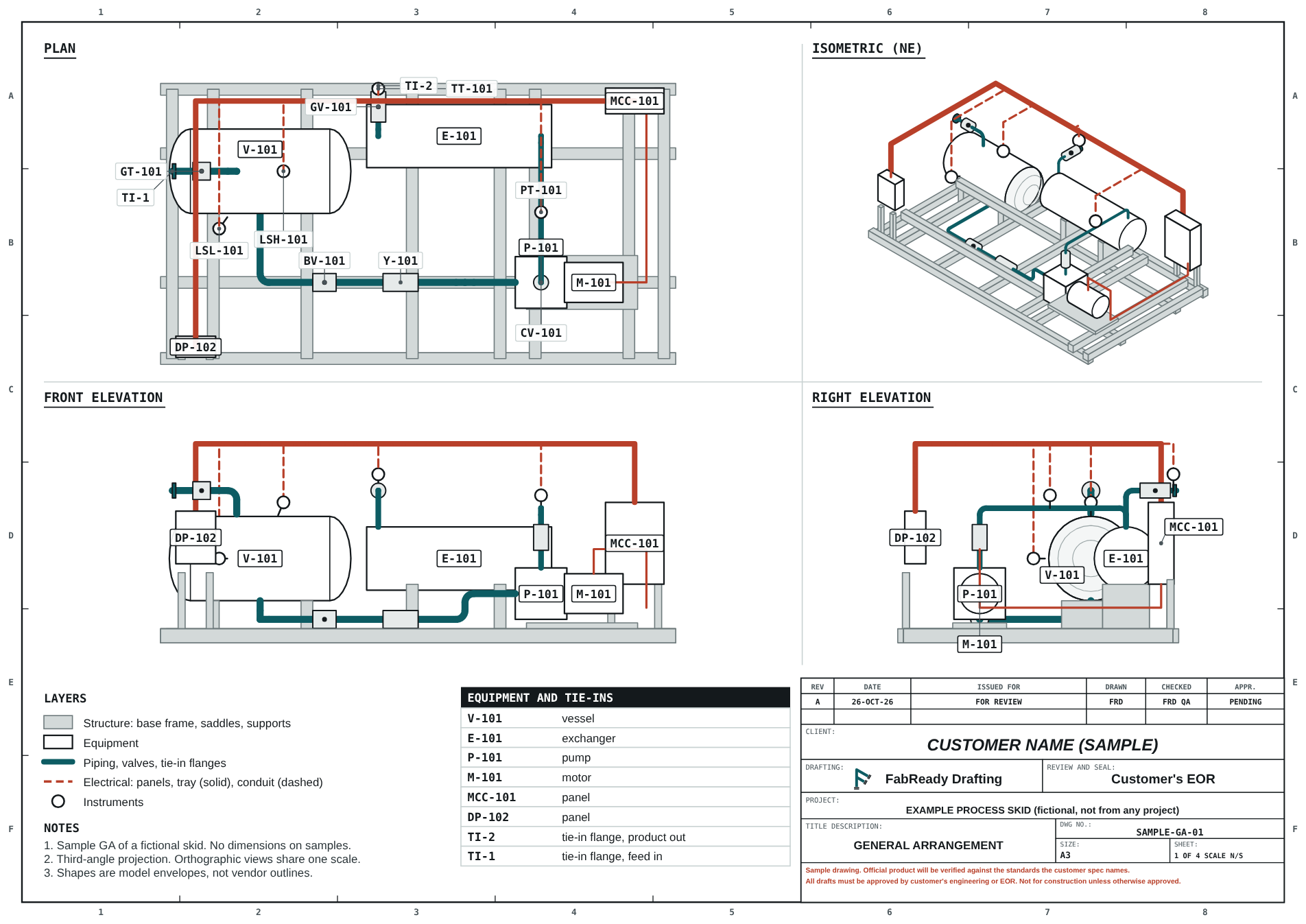

Sample general arrangement: plan, front and right elevations and an isometric of the fictional skid, all layers. — **Sheet 04 / GA-01 General arrangement**Plan, front and right elevations at one scale, plus an isometric, with the equipment and tie-in list.

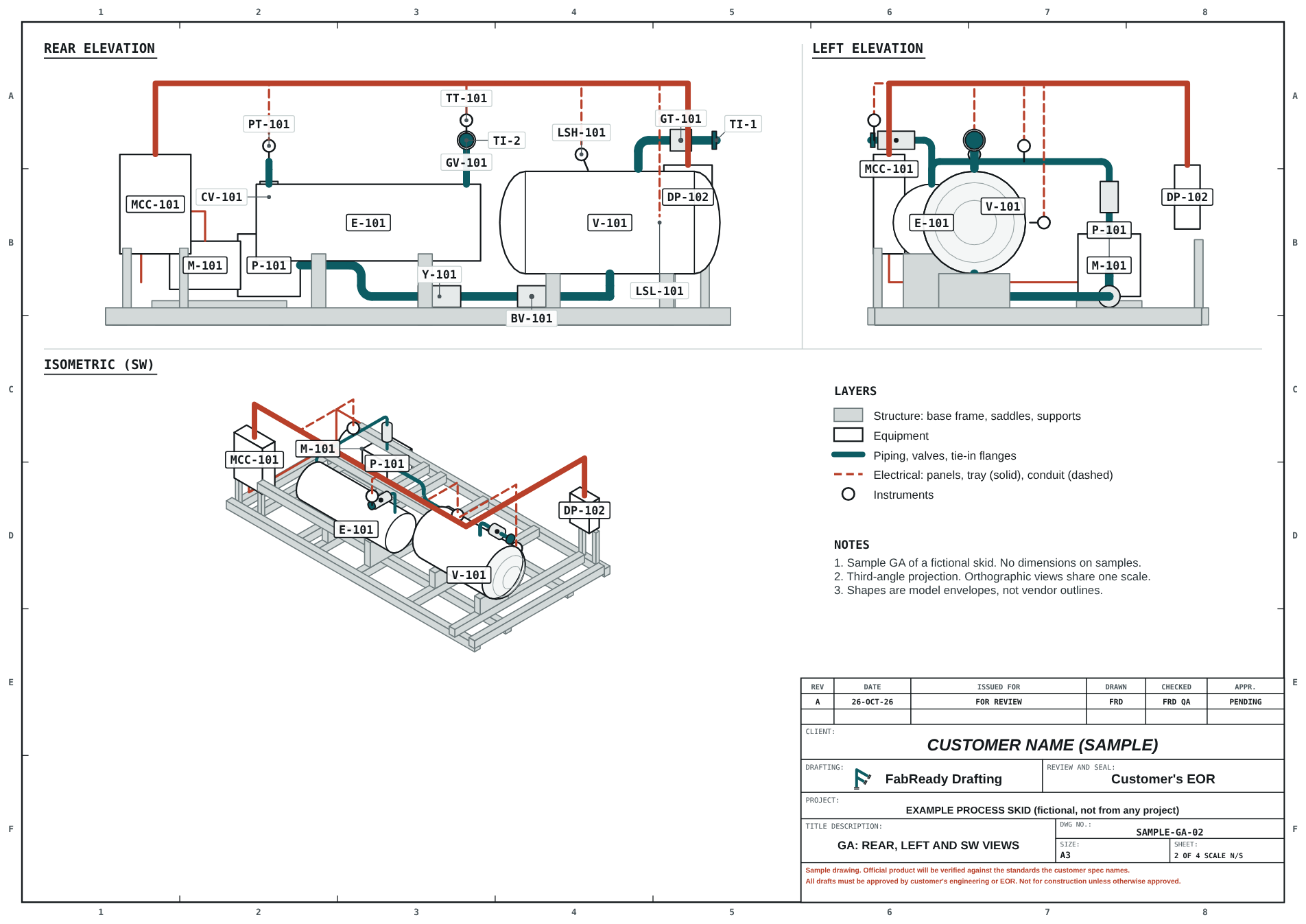

Sample GA sheet with rear and left elevations and a south-west isometric. — **Sheet 04 / GA-02 Other views**Rear and left elevations and the isometric from the opposite corner.

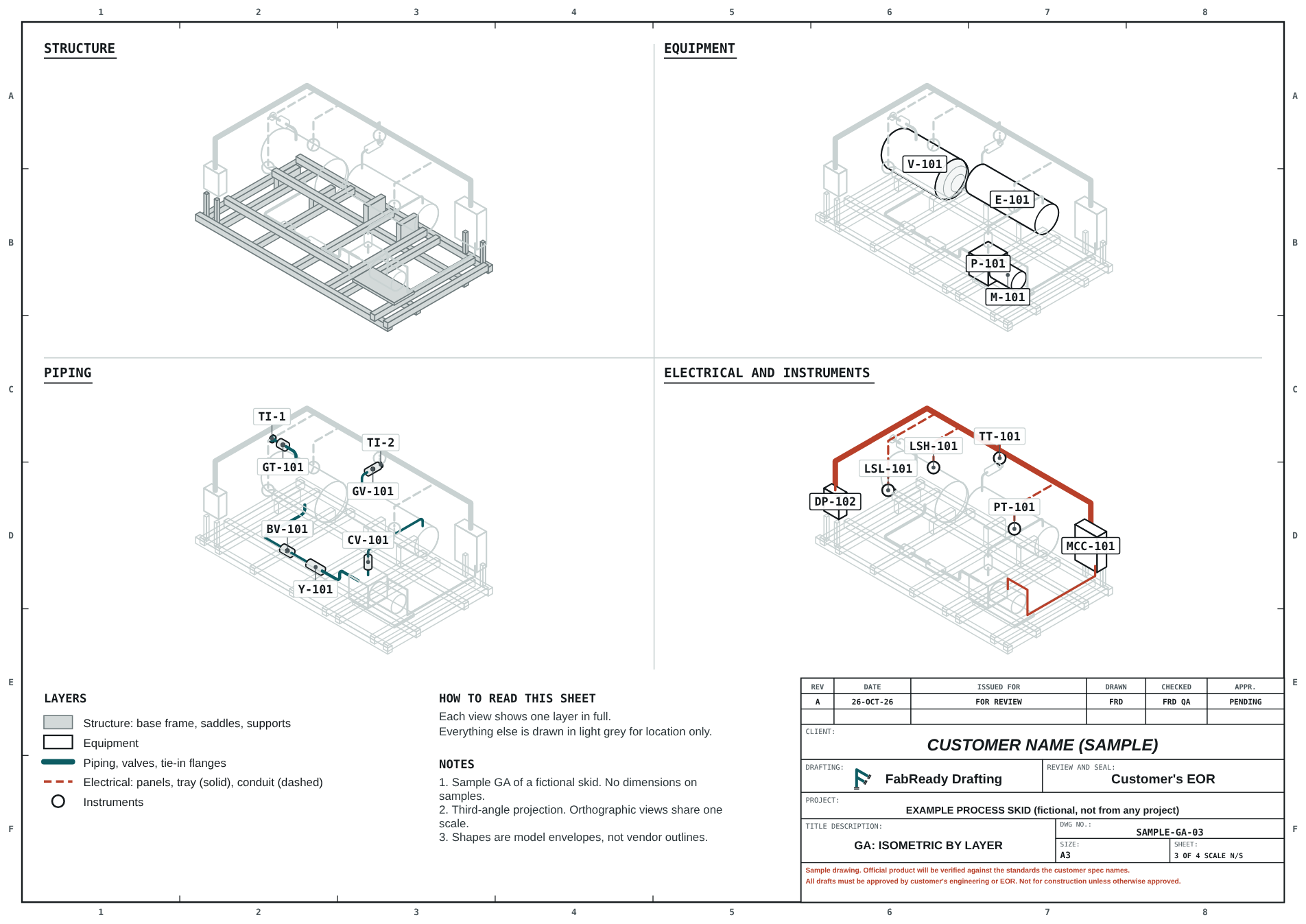

Sample GA sheet showing the skid isometric layer by layer: structure, equipment, piping, electrical and instruments. — **Sheet 04 / GA-03 Isometric by layer**Structure, equipment, piping, and electrical each drawn on their own, with the rest in grey.

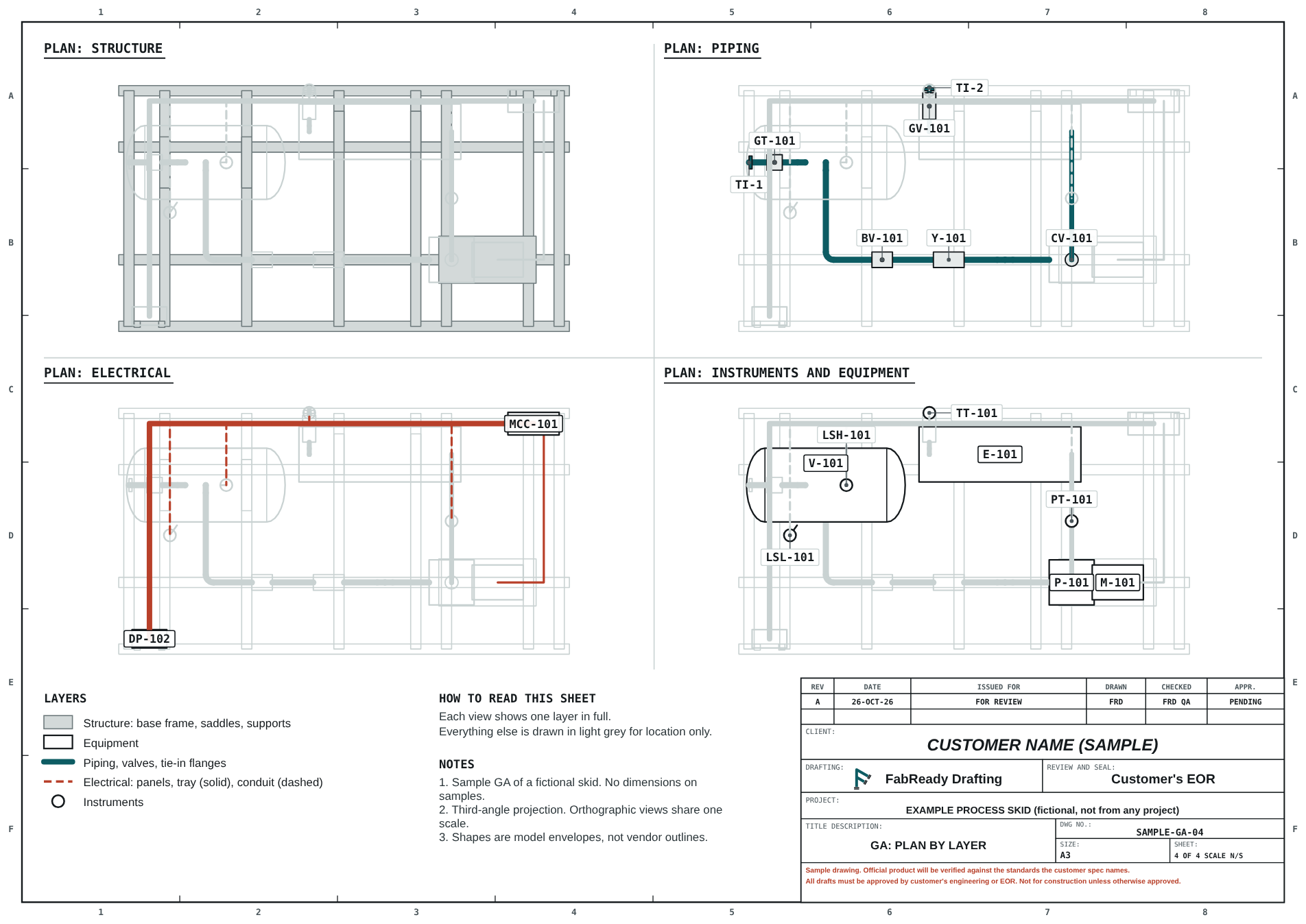

Sample GA sheet showing the skid plan layer by layer. — **Sheet 04 / GA-04 Plan by layer**The same layers in plan: steel, pipe routing, tray and conduit, instruments and equipment.

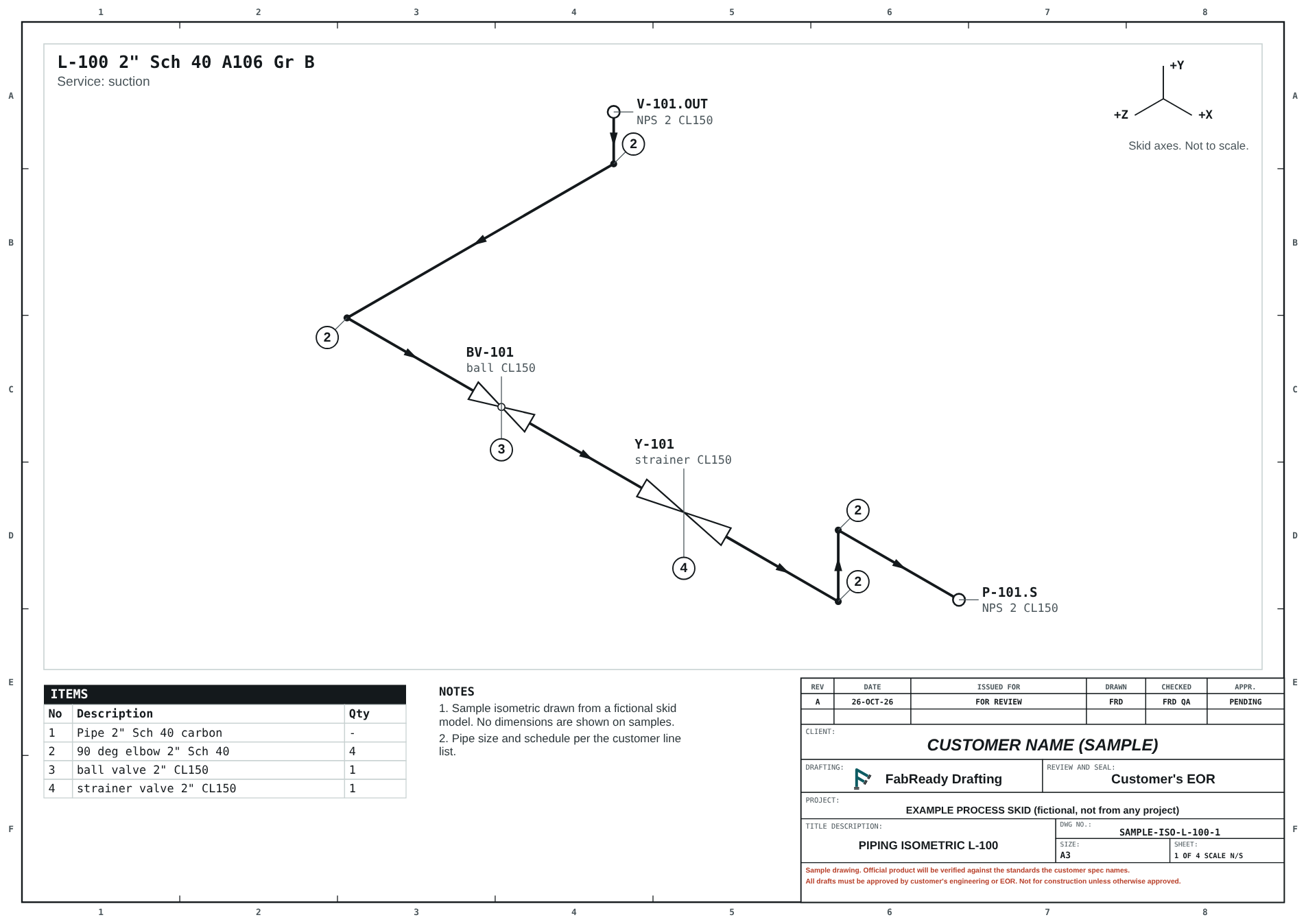

Sample piping isometric of the suction line L-100. — **Sheet 03 / Isometric L-100**Suction line from the vessel to the pump: elbows, ball valve and strainer, itemised.

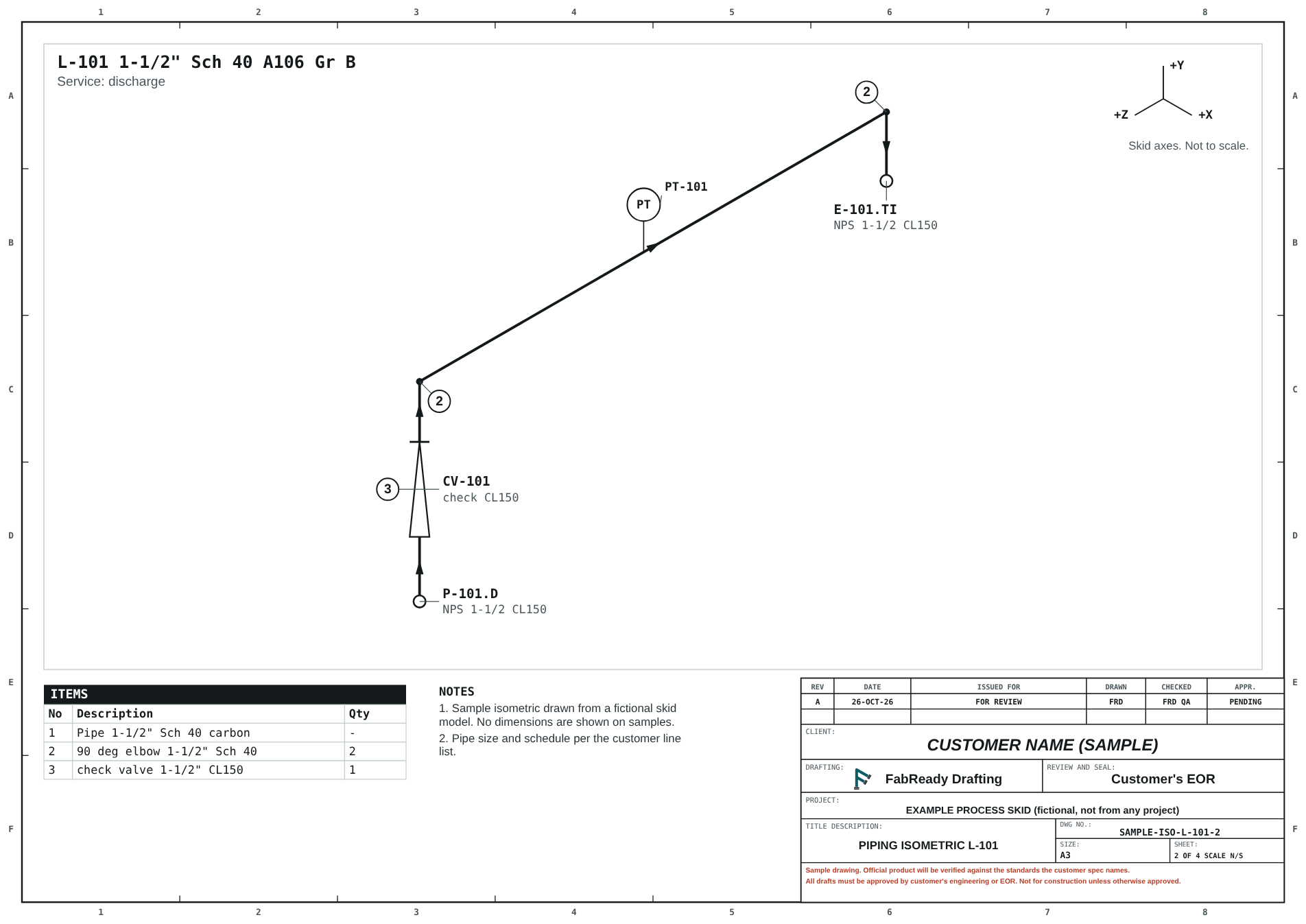

Sample piping isometric of the discharge line L-101. — **Sheet 03 / Isometric L-101**Discharge line from the pump to the exchanger, with check valve and pressure transmitter.

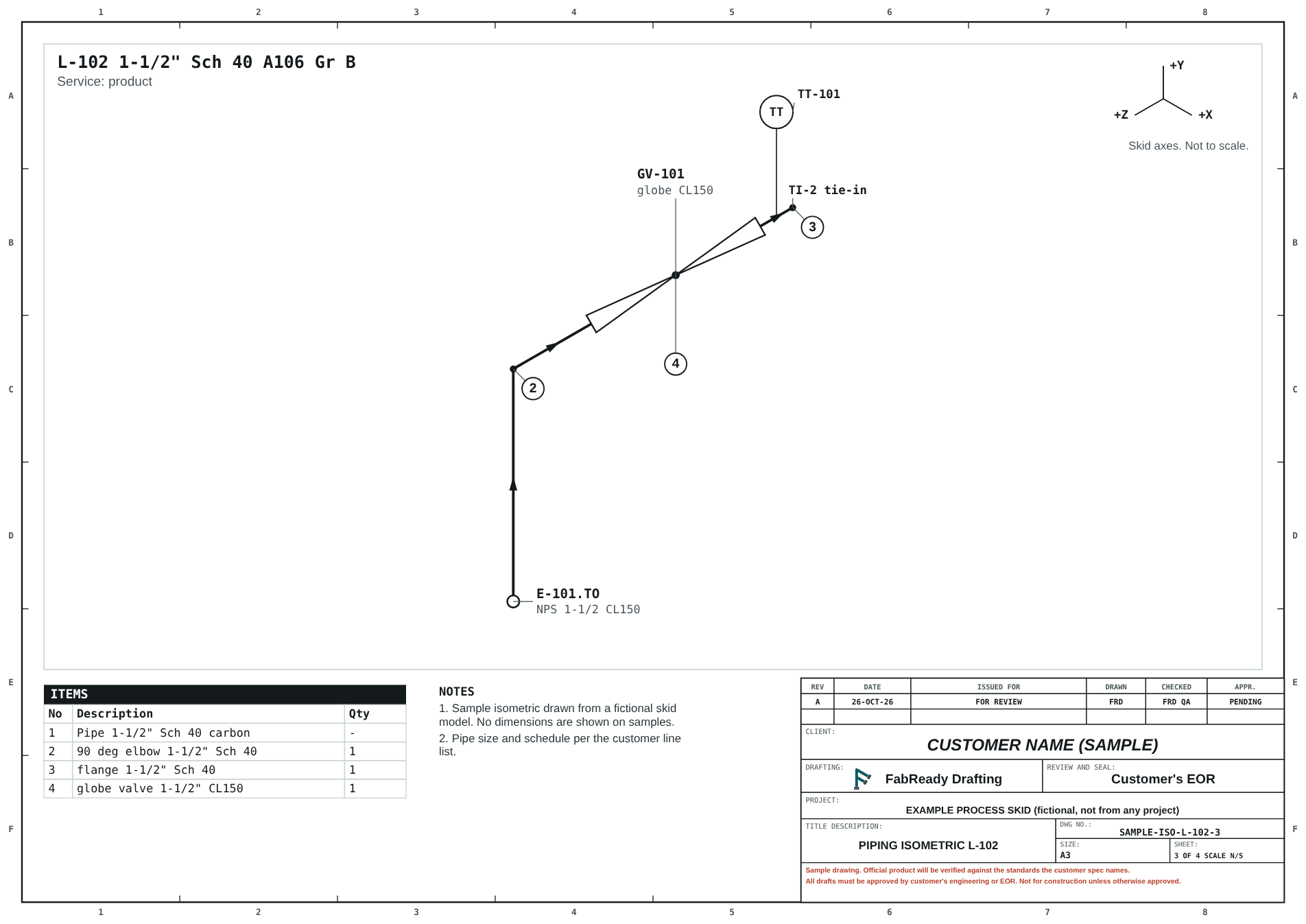

Sample piping isometric of the return line L-102. — **Sheet 03 / Isometric L-102**Product line from the exchanger to the skid tie-in TI-2, with globe valve and temperature transmitter.

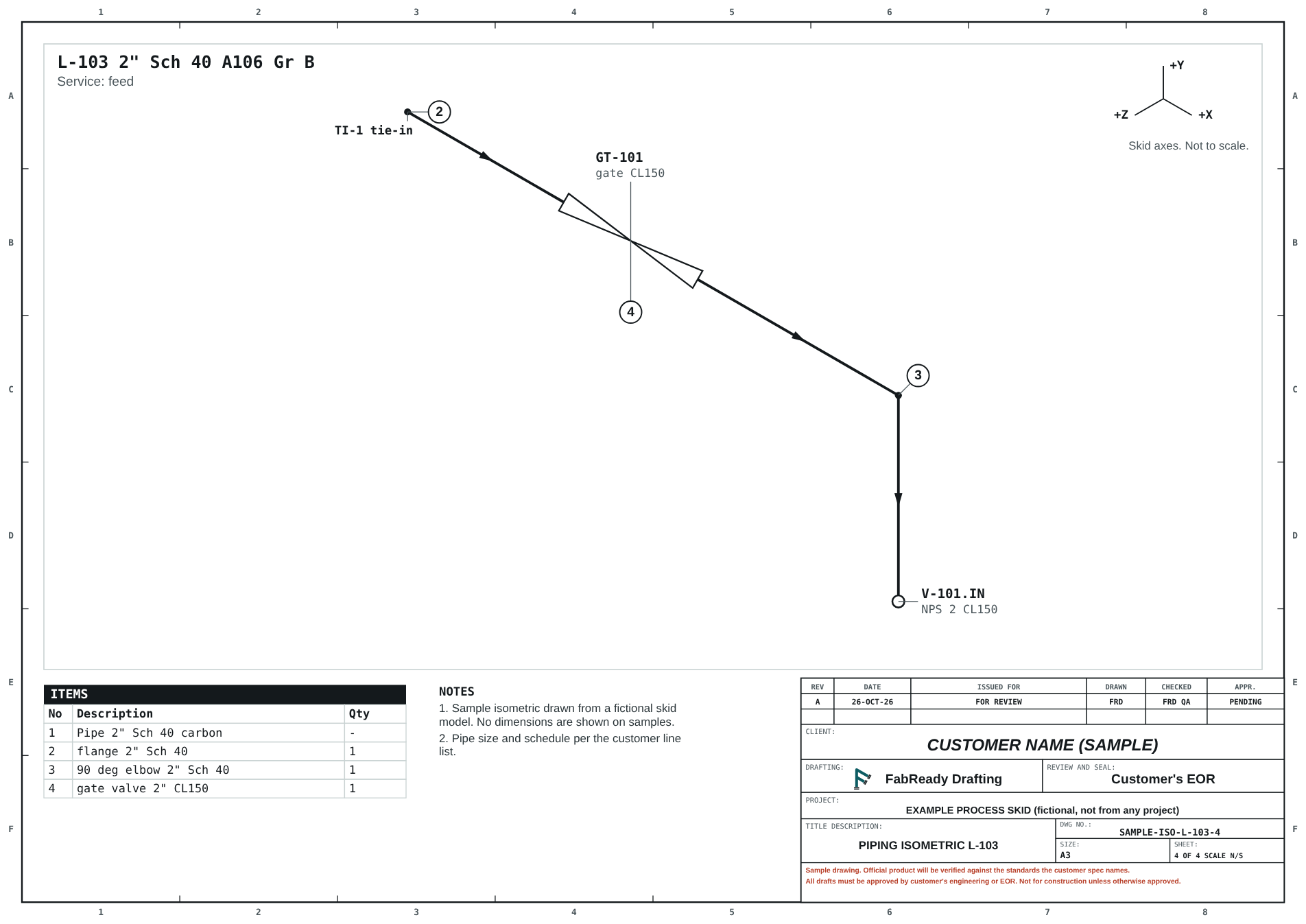

Sample piping isometric of the feed line L-103 from the skid tie-in to the vessel. — **Sheet 03 / Isometric L-103**Feed line from the skid tie-in TI-1, through the gate valve, to the vessel.

Open the sample sheets (PDF) Download the sample BOM (Excel) Open the interactive 3D model

These are samples of a fictional skid. Official product will be verified against the standards your spec names. All drafts must be approved by the customer's engineering or EOR, and are not for construction unless otherwise approved. Customer packages also carry cut lengths and a fitting list on each isometric.

How it works

From your spec to a reviewed package

STEP 1
You send the spec
Line list, design basis, equipment list, nozzle data, and your skid envelope.
STEP 2
We check it is complete
You get a list of anything missing, in one message, before any work starts.
STEP 3
Fixed-price quote
Scope, what is included, and the number of revision rounds.
STEP 4
Draft and check
The model is built, then checked automatically and by a person.
STEP 5
Delivery
Your engineer of record reviews, marks up, and seals.

Checks before delivery

What gets caught before you see it

Every pipe, fitting, flange, gasket, bolt set, and valve is checked against the edition of each dimensional standard your specification names. Where it names none, we use the latest published edition. The edition used is recorded on every job.
Every BOM line traces to a row in your piping spec, with its material and rating. Anything your spec does not cover is flagged for you, never filled in by us.
Every line matches your line list: size, schedule, and material.
Every flanged joint carries a flange, gasket, and bolt set in the BOM, and tie-in items are marked as by others where they should be.
Pipe ends meet the nozzles and valves they connect to, within 2 mm, and each pipe leg is long enough to hold the elbow it meets.
Every instrument and motor has a conduit run back to a panel.
P&ID symbols and instrument tags follow the symbol standard and edition your specification names, or your own legend. Where it names none, we use the latest published edition.
The BOM quantities agree with the model. Any edit that breaks that is flagged.
Every design basis item is traced to a document you sent.

Fictional example. Plan view. Samples carry no dimensions.

Scope

What we do and do not do

We draft

We turn your decisions into documents. Sizes, schedules, materials, ratings, and code editions come from your spec. If something is missing, we ask you. We do not pick a value to fill the gap.

We do not

Provide engineering design, review, or approval
Stamp, seal, or certify any document
Select pipe schedules, materials, or codes for you
Replace your engineer of record, who stays responsible for the design

Request a quote

Tell us about the skid

Quote requests open soon

The online form is almost ready. Until then, email the skid description and what documents you have to quotes@fabreadydrafting.com. Please do not attach confidential files yet; we set up a secure transfer once we agree to work together.
